Available for following automatic cutting machines: Profilma 250, 500 E, 510 E, 600 R Top loading by crane or fork lift Max. bundle Ø 650 mm Max. load 4.000 kg Bar length 3.000 – 6.200 mm Pneumatic gripper for good feeding of the profiles
Tooth beld drive – with storages Available for following automatic cutting machines: Profilma 200, 250, 500 E Max. load 8 storages Max. square 50 x 80 mm Max. weight 3 kg / m Profile length 2.100 – 6.500 mm Pneumatic gripper for good feeding of the profiles

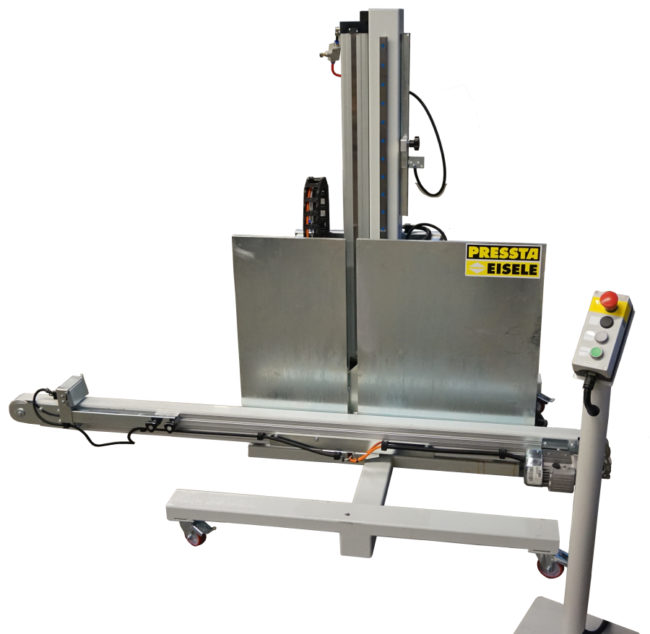

Helping hand: Lifter for placing profiles on roller tracks or loading magazines. Pneumatic lifting and feeding of profile bars by conveyor belt Adjustable stops to place the bar to correct position. Function: The bar is pushed against a contact surface – the bar lift up automatically and feed to load. Automatic lowering when position is…
The high-performance swarf extractor MG9 has an automatic rotary valve and can be operated either continuously, or controlled be an automatic saw. The Aluminum chips fall from the rotary valve into a collection box of the user. Driven by a 4 kW electrical motor, generating an airflow of 4000 m³ Automatic rotary valve that ejects…
The length measuring system PE 50 d can be positioned manually, and then be fine adjusted with a hand operated wheel. This allows for an easy positioning in the range of a tenth of a millimeter. The measuring tolerance of the system is +/- 0,1 mm/m . The measuring data is collected directly at the…
The length measuring system PE 50 e is positioned automatically through a servo motor, after the desired measurements have been entered into the control unit. A modern adjusting positioning control unit ensures that the movable stop stays exactly in position even when under load, The measuring system PE 50 e works with a standard tolerance…
The length measuring system PE 50 h can be operated with a manually operated wheel. To offer greater stability, the tiltable stop is mounted on a double arm setup. The reading of the measurement happens directly at the stop through a magnet tape and sensor, offering a very high precision level. The carriage with which…
Our roller conveyor series RB offers the simplest solution for a manual and stable material supply station for sawing or punching centers. The different versions of our RB roller conveyors can all be heigth adjusted, are available in different widths and lengths and can either be supplied with standard plastic or optional steel rolls. Further…
