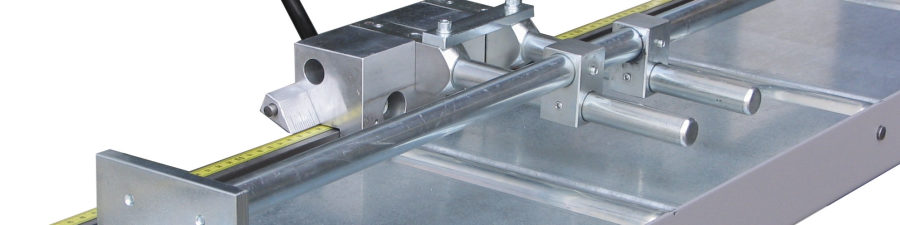

Our length measuring system PE 50 m offers an affordable, comfortable and easy to use alternative to the purely manual measuring of your profiles. The stop of the length measuring system can quickly be moved into the desired position by the operator and can then be securely fixed in place manually by tilting the fixing lever. For easy of work, the leangth measuring unit can be tilted upwards out of the way for profiles that do not need to be measured. The measuring of the length is done through an easy to read measuring tape which has a millimeter scale printed on it.
The length measuring system PE 50 m is available in various different lengths and optionally the stopping arm can be equipped with a show absorber to reduce the stress on the measuring device.
- 4-fold ball bearing movable mount
- Manual operation, fixing and measuring
- Measuring tape in millimeter (resolution is 0,1 mm)
- To be mounted on the right side of a machine
- Incl. roller conveyor RB300 with a loading capacity of 200 kg/m
