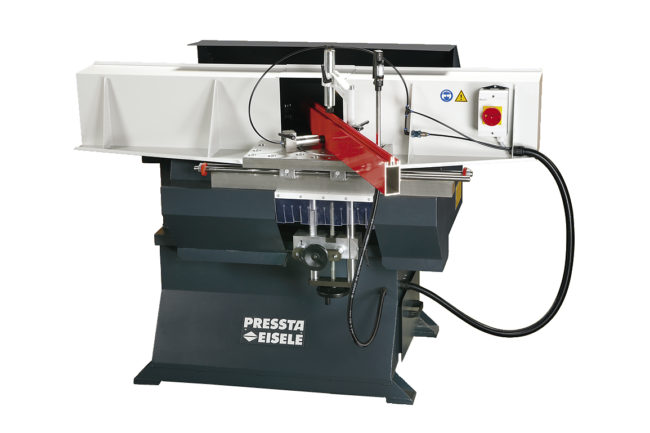

Prisma 400

Manual end notching saw to work the ends of aluminium or PVC profiles Use of saw blades Ø 400 mm vertical and horizontal Manual operation with slidable supporting table 2 x 3,0 KW, 400 V, 50 Hz Pneumatic profile clamps horizontal and vertical Material back fence adjustable 30° – 90° read out by scale Vertical…

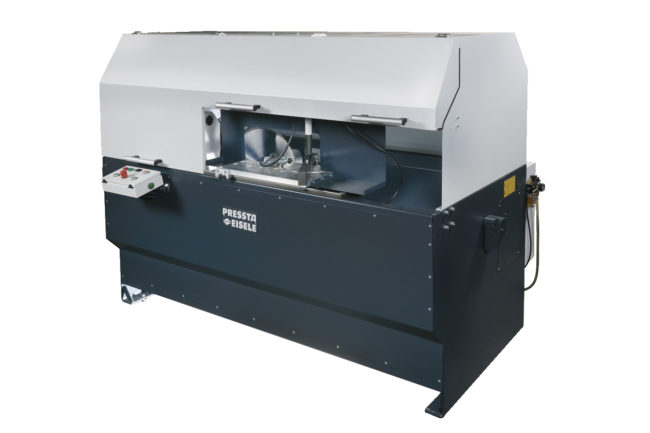

Prisma 500

Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs Manual adjustment of the horizontal blade max. 20mm to the front to cut slots Notch variation: rectangle, one sided angular, two sided angular, three sided angular Notch dimensions: 185mm horizontal, and 210mm vertical at (90°) Profile dimensions: height maximum…

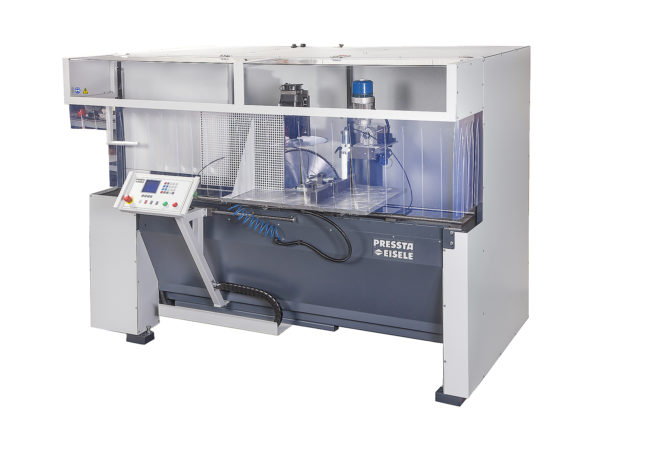

Prisma 650E / 652

Variable notching possibilities for mullion and transom combinations, e.g. curtain walls, winter garden, sky lights and special designs. Notch variation: rectangle, one sided angular, two sided angular, 3 sided angular. Processing features: The Prisma 650 is able to process standard profiles. Notch dimensions: 210mm horizontal, 262 mm vertical (90°) Profile dimensions: height maximum 320mm, width maximum 280mm 4-axis adjustment…
